Wheel spacer kit 40mm incl. wheel bolts
NJT alum. wheel spacers 40mm incl. wheel bolts with general operating permit (ABE)! wheel spacer kit - 40mm per axle (20mm each side) - with centering element - hole circle 5x100 / 5x112 - hub hole bore 57,1mm -10x spherical wheel bolts M12x1,5 45mm Suitable for: Volkswagen: Golf 3 / Vento (1H / 1HXO / 1HXOF / 1HX1) - all NJT-Extrem wheel spacers are made of high strength aluminium - additionally anodized, so that there is no chance for rust to set in - with general operating permit / ABE (valid for the designated wheel/tire combinations) Determining the required wheel bolt length: - measure shaft length of the original wheel bolt in mm - add the original shaft length to the wheel spacer width - example: original shaft length 25mm + 5mm wheel spacer (each side) = 30mm new wheel bolt length - check whether conical or spherical collar bolts are required- - only for 5-hole rims
- - all NJT-Extrem wheel spacers are made of high strength aluminium
- - additionally anodized, so that there is no chance for rust to set in
- - with general operating permit / ABE (valid for the designated wheel/tire combinations)
EUR
83.95
new
https://www.jom.de/en/wheel-spacer-kit-40mm-incl-wheel-bolts9
83,95 € RRP 89,95 €
🟢 Sofort versandfähig, ausreichende Stückzahl
Product.Nr.: 790499 790499
EAN: 4048961101172 4048961101172
Manufacturer: NJT eXtrem NJT eXtrem
weight: 2,21 kg 2.2120 kg
product description

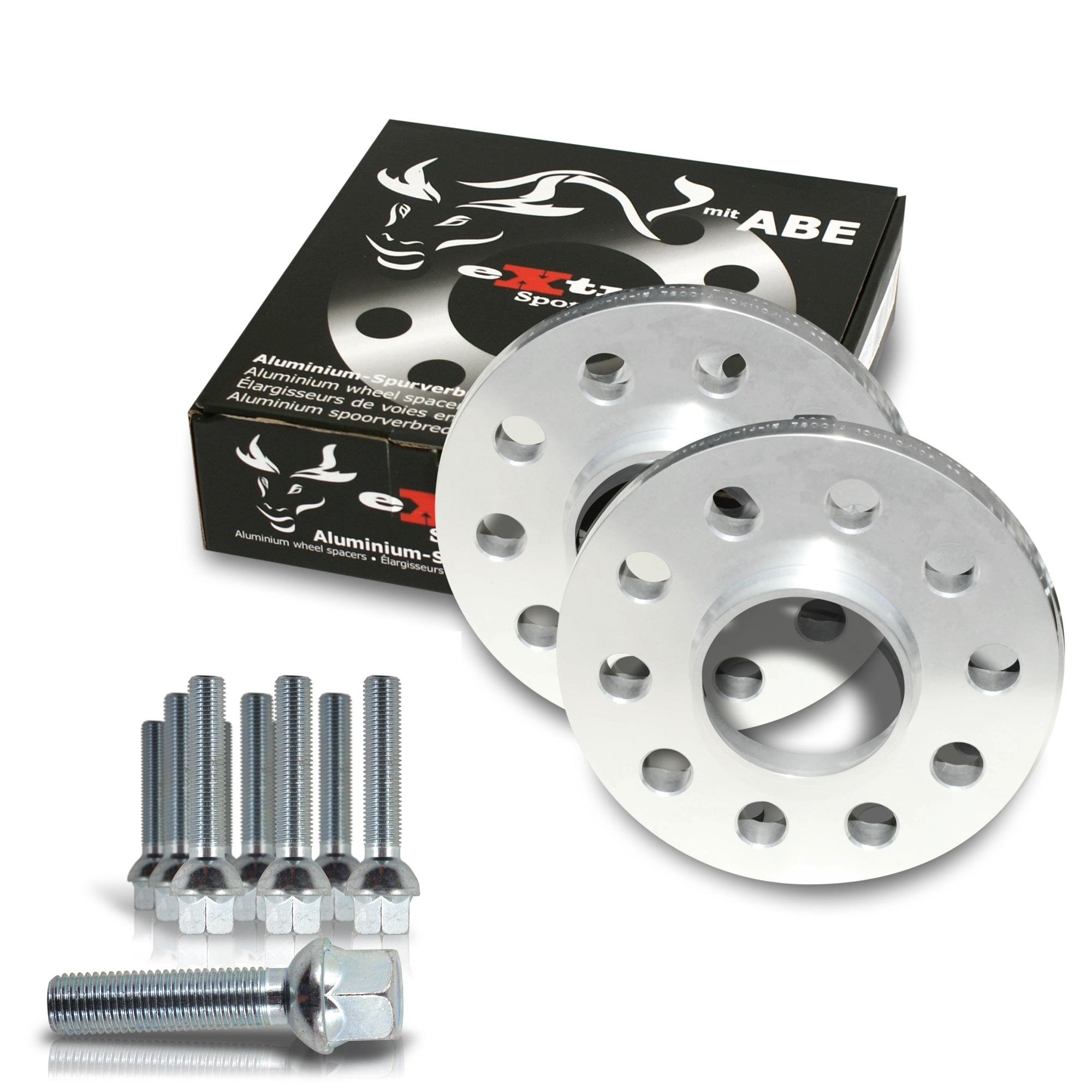

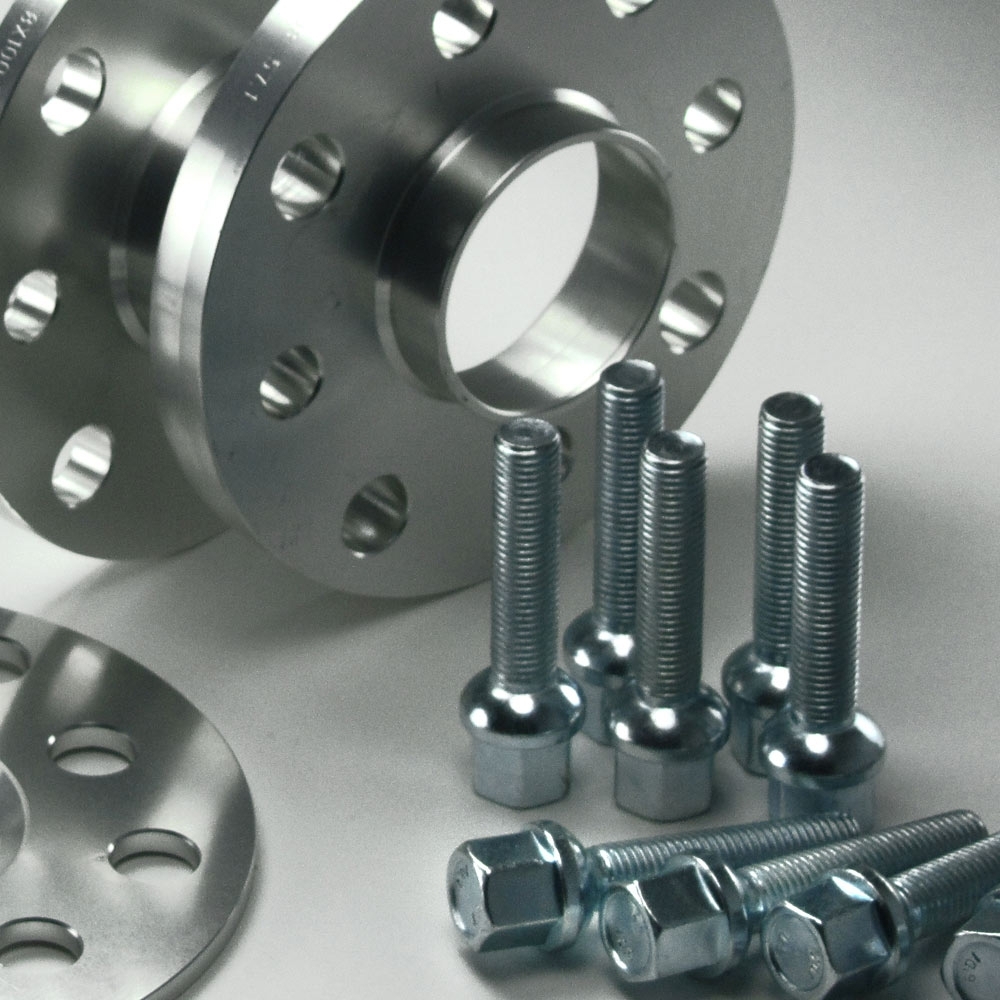

NJT alum. wheel spacers 40mm incl. wheel bolts
with general operating permit (ABE)!
wheel spacer kit
- 40mm per axle (20mm each side)
- with centering element
- hole circle 5x100 / 5x112
- hub hole bore 57,1mm
-10x spherical wheel bolts M12x1,5 45mm
Suitable for:
Volkswagen:
Golf 3 / Vento (1H / 1HXO / 1HXOF / 1HX1)
- all NJT-Extrem wheel spacers are made of high strength aluminium
- additionally anodized, so that there is no chance for rust to set in
- with general operating permit / ABE (valid for the designated wheel/tire combinations)

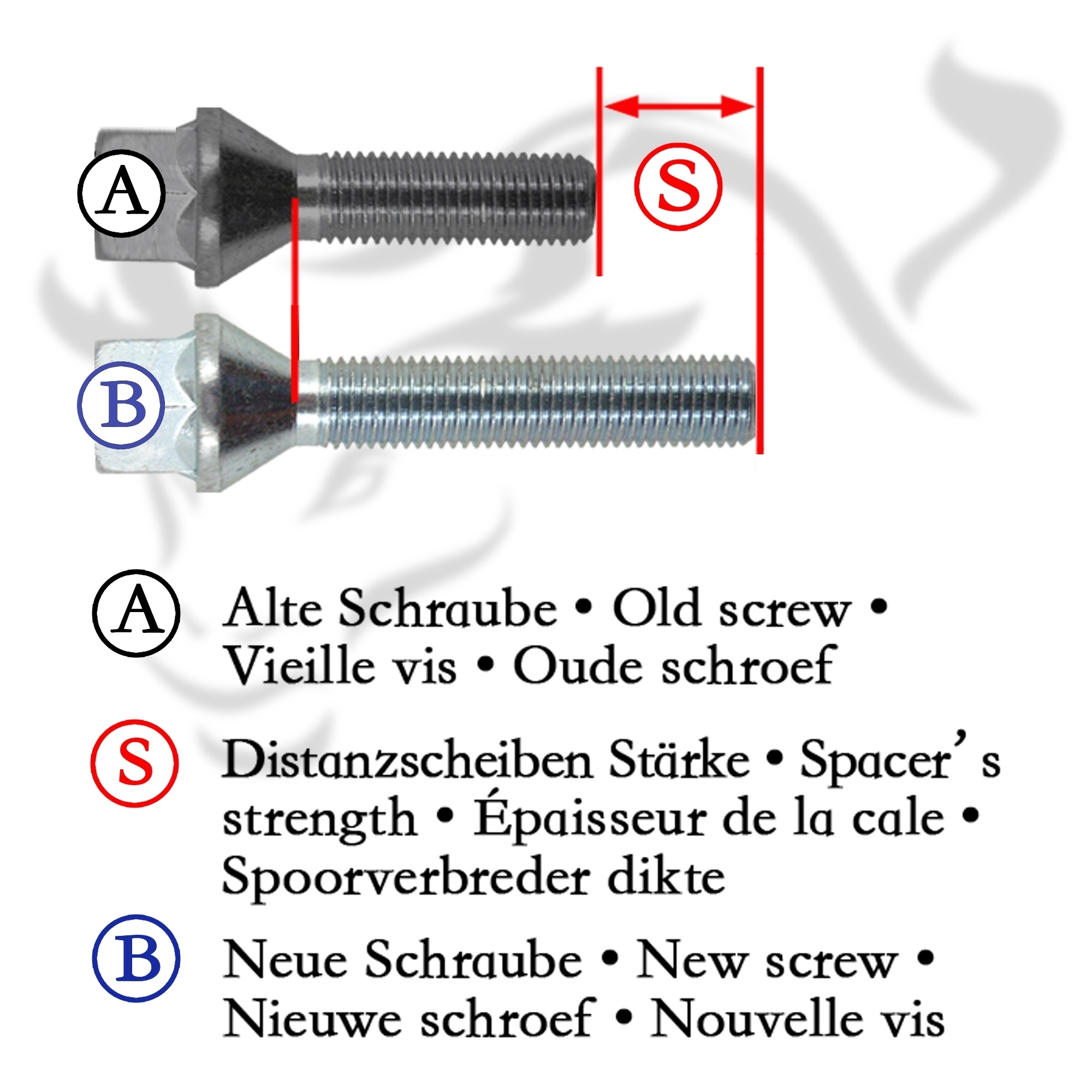

Determining the required wheel bolt length:
- measure shaft length of the original wheel bolt in mm
- add the original shaft length to the wheel spacer width
- example: original shaft length 25mm + 5mm wheel spacer (each side) = 30mm new wheel bolt length

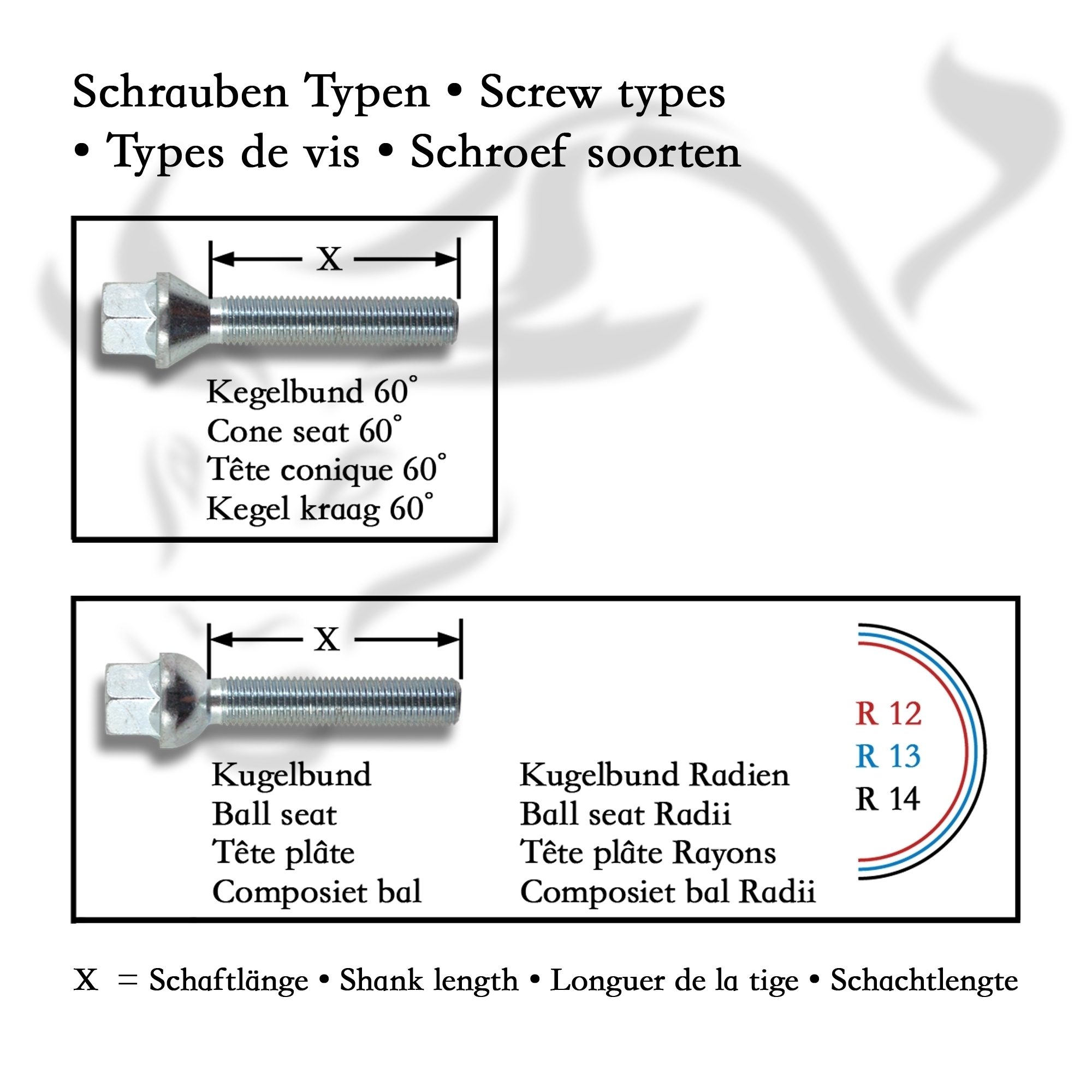

- check whether conical or spherical collar bolts are required
- - only for 5-hole rims
- - all NJT-Extrem wheel spacers are made of high strength aluminium
- - additionally anodized, so that there is no chance for rust to set in
- - with general operating permit / ABE (valid for the designated wheel/tire combinations)
Product variations
Compatibility
| Manufacturer | Vehicle | Construction year | HSN/TSN |
|---|---|---|---|
| VW | Golf III 1.4 1390 ccm, 40 KW, 55 PSHSN / TSN: 0600|919 Plattform : 1H1 |
11.1991 - 08.1997 | 0600|919 |
| VW | Golf III 1.4 1390 ccm, 44 KW, 60 PSHSN / TSN: 0600|890<>0603|378 Plattform : 1H1 |
10.1991 - 08.1997 | 0600|890<>0603|378 |
| VW | Golf III 1.6 1595 ccm, 74 KW, 101 PSHSN / TSN: 0600|956<>0603|386 Plattform : 1H1 |
07.1995 - 08.1997 | 0600|956<>0603|386 |
| VW | Golf III 1.6 1598 ccm, 55 KW, 75 PSHSN / TSN: 0600|911<>0603|381 Plattform : 1H1 |
09.1992 - 08.1997 | 0600|911<>0603|381 |
| VW | Golf III 1.8 1781 ccm, 55 KW, 75 PSHSN / TSN: 0600|891<>0603|417 Plattform : 1H1 |
11.1991 - 08.1997 | 0600|891<>0603|417 |
| VW | Golf III 1.8 1781 ccm, 66 KW, 90 PSHSN / TSN: 0600|892<>0603|384 Plattform : 1H1 |
11.1991 - 08.1997 | 0600|892<>0603|384 |
| VW | Golf III 1.8 Syncro 1781 ccm, 66 KW, 90 PSHSN / TSN: 0600|913<>0603|385 Plattform : 1H1 |
01.1993 - 08.1997 | 0600|913<>0603|385 |
| VW | Golf III 1.9 D 1896 ccm, 47 KW, 64 PSHSN / TSN: 0600|226<>0600|895 Plattform : 1H1 |
11.1991 - 08.1997 | 0600|226<>0600|895 |
| VW | Golf III 1.9 SDI 1896 ccm, 47 KW, 64 PSHSN / TSN: 0603|379 Plattform : 1H1 |
07.1995 - 08.1997 | 0603|379 |
| VW | Golf III 1.9 TD,GTD 1896 ccm, 55 KW, 75 PSHSN / TSN: 0600|227<>0600|896<>0603|380 Plattform : 1H1 |
11.1991 - 08.1997 | 0600|227<>0600|896<>0603|380 |
| VW | Golf III 1.9 TDI 1896 ccm, 66 KW, 90 PSHSN / TSN: 0600|943<>0603|382 Plattform : 1H1 |
09.1993 - 08.1997 | 0600|943<>0603|382 |
| VW | Golf III 1.9 TDI 1896 ccm, 81 KW, 110 PSHSN / TSN: 0600|279<>0603|387 Plattform : 1H1 |
04.1996 - 08.1997 | 0600|279<>0603|387 |
| VW | Golf III 1.9 TDI Syncro 1896 ccm, 66 KW, 90 PSHSN / TSN: 0600|294<>0603|383 Plattform : 1H1 |
08.1995 - 08.1997 | 0600|294<>0603|383 |
| VW | Golf III 2.0 1984 ccm, 85 KW, 115 PSHSN / TSN: 0600|893<>0603|388 Plattform : 1H1 |
11.1991 - 08.1997 | 0600|893<>0603|388 |
| VW | Golf III 2.0 GL 1984 ccm, 79 KW, 107 PSPlattform : 1H1 | 08.1995 - 09.1997 | |
| VW | Golf III 2.0 GTI 16V 1984 ccm, 110 KW, 150 PSHSN / TSN: 0600|908<>0603|390 Plattform : 1H1 |
08.1992 - 08.1997 | 0600|908<>0603|390 |
| VW | Golf III 2.0 Syncro 1984 ccm, 85 KW, 115 PSHSN / TSN: 0600|295<>0603|389 Plattform : 1H1 |
08.1995 - 08.1997 | 0600|295<>0603|389 |
| VW | Golf III 2.8 VR6 2792 ccm, 128 KW, 174 PSHSN / TSN: 0600|894<>0603|391 Plattform : 1H1 |
01.1992 - 08.1997 | 0600|894<>0603|391 |
| VW | Golf III 2.9 VR6 Syncro 2861 ccm, 140 KW, 190 PSHSN / TSN: 0600|947<>0603|392 Plattform : 1H1 |
10.1994 - 08.1997 | 0600|947<>0603|392 |
| VW | Golf III Citystromer 20 KW, 27 PSHSN / TSN: 0600|965 Plattform : 1H1 |
11.1994 - 08.1997 | 0600|965 |
| VW | Golf III Variant 1.4 1390 ccm, 40 KW, 55 PSHSN / TSN: 0600|936 Plattform : 1H5 |
07.1993 - 04.1999 | 0600|936 |
| VW | Golf III Variant 1.4 1390 ccm, 44 KW, 60 PSHSN / TSN: 0600|937<>0603|393 Plattform : 1H5 |
07.1993 - 04.1999 | 0600|937<>0603|393 |
| VW | Golf III Variant 1.6 1595 ccm, 74 KW, 101 PSHSN / TSN: 0600|958<>0603|401 Plattform : 1H5 |
07.1994 - 04.1999 | 0600|958<>0603|401 |
| VW | Golf III Variant 1.6 1598 ccm, 55 KW, 75 PSPlattform : 1H5 | 07.1993 - 12.1997 | |
| VW | Golf III Variant 1.8 1781 ccm, 55 KW, 75 PSHSN / TSN: 0600|938<>0603|396 Plattform : 1H5 |
07.1993 - 04.1999 | 0600|938<>0603|396 |
| VW | Golf III Variant 1.8 1781 ccm, 66 KW, 90 PSHSN / TSN: 0600|939<>0603|399 Plattform : 1H5 |
07.1993 - 04.1999 | 0600|939<>0603|399 |
| VW | Golf III Variant 1.8 Syncro 1781 ccm, 66 KW, 90 PSHSN / TSN: 0600|961<>0603|400 Plattform : 1H5 |
10.1994 - 04.1999 | 0600|961<>0603|400 |
| VW | Golf III Variant 1.9 D 1896 ccm, 48 KW, 65 PSHSN / TSN: 0600|941 Plattform : 1H5 |
07.1993 - 04.1999 | 0600|941 |
| VW | Golf III Variant 1.9 SDI 1896 ccm, 47 KW, 64 PSHSN / TSN: 0603|394 Plattform : 1H5 |
07.1995 - 04.1999 | 0603|394 |
| VW | Golf III Variant 1.9 TD 1896 ccm, 55 KW, 75 PSHSN / TSN: 0600|942<>0603|395 Plattform : 1H5 |
07.1993 - 04.1999 | 0600|942<>0603|395 |
| VW | Golf III Variant 1.9 TDI 1896 ccm, 66 KW, 90 PSHSN / TSN: 0600|951<>0603|397 Plattform : 1H5 |
03.1994 - 04.1999 | 0600|951<>0603|397 |
| VW | Golf III Variant 1.9 TDI 1896 ccm, 81 KW, 110 PSHSN / TSN: 0600|281<>0603|402 Plattform : 1H5 |
04.1996 - 04.1999 | 0600|281<>0603|402 |
| VW | Golf III Variant 1.9 TDI Syncro 1896 ccm, 66 KW, 90 PSHSN / TSN: 0600|966<>0603|398 Plattform : 1H5 |
07.1995 - 04.1999 | 0600|966<>0603|398 |
| VW | Golf III Variant 2.0 1984 ccm, 79 KW, 107 PSPlattform : 1H5 | 08.1995 - 04.1996 | |
| VW | Golf III Variant 2.0 1984 ccm, 85 KW, 115 PSHSN / TSN: 0600|940<>0603|403 Plattform : 1H5 |
07.1993 - 04.1999 | 0600|940<>0603|403 |
| VW | Golf III Variant 2.0 Syncro 1984 ccm, 85 KW, 115 PSHSN / TSN: 0600|296<>0603|404 Plattform : 1H5 |
08.1995 - 04.1999 | 0600|296<>0603|404 |
| VW | Golf III Variant 2.9 VR6 2861 ccm, 140 KW, 190 PSPlattform : 1H5 | 10.1994 - 04.1999 | |
| VW | Golf III Variant 2.9 VR6 Syncro 2861 ccm, 140 KW, 190 PSHSN / TSN: 0600|962<>0603|405 Plattform : 1H5 |
10.1994 - 04.1999 | 0600|962<>0603|405 |
| VW | Vento 1.4 1390 ccm, 40 KW, 55 PSHSN / TSN: 0600|920 Plattform : 1H2 |
11.1991 - 09.1998 | 0600|920 |
| VW | Vento 1.4 1390 ccm, 44 KW, 60 PSHSN / TSN: 0600|897<>0603|406 Plattform : 1H2 |
11.1991 - 09.1998 | 0600|897<>0603|406 |
| VW | Vento 1.6 1595 ccm, 74 KW, 101 PSHSN / TSN: 0600|957<>0603|412 Plattform : 1H2 |
10.1994 - 09.1998 | 0600|957<>0603|412 |
| VW | Vento 1.6 1598 ccm, 55 KW, 75 PSHSN / TSN: 0600|912<>0603|409 Plattform : 1H2 |
09.1992 - 09.1998 | 0600|912<>0603|409 |
| VW | Vento 1.8 1781 ccm, 55 KW, 75 PSHSN / TSN: 0600|898<>0603|416 Plattform : 1H2 |
11.1991 - 09.1998 | 0600|898<>0603|416 |
| VW | Vento 1.8 1781 ccm, 66 KW, 90 PSHSN / TSN: 0600|899<>0603|411 Plattform : 1H2 |
11.1991 - 09.1998 | 0600|899<>0603|411 |
| VW | Vento 1.9 D 1896 ccm, 48 KW, 65 PSHSN / TSN: 0600|902 Plattform : 1H2 |
11.1991 - 09.1998 | 0600|902 |
| VW | Vento 1.9 SDI 1896 ccm, 47 KW, 64 PSHSN / TSN: 0603|407 Plattform : 1H2 |
04.1997 - 09.1998 | 0603|407 |
| VW | Vento 1.9 TD 1896 ccm, 55 KW, 75 PSHSN / TSN: 0600|903<>0603|408 Plattform : 1H2 |
11.1991 - 09.1998 | 0600|903<>0603|408 |
| VW | Vento 1.9 TDI 1896 ccm, 66 KW, 90 PSHSN / TSN: 0600|944<>0603|410 Plattform : 1H2 |
09.1993 - 09.1998 | 0600|944<>0603|410 |
| VW | Vento 1.9 TDI 1896 ccm, 81 KW, 110 PSHSN / TSN: 0600|280<>0603|413 Plattform : 1H2 |
04.1996 - 09.1998 | 0600|280<>0603|413 |
| VW | Vento 2.0 1984 ccm, 85 KW, 115 PSHSN / TSN: 0600|900<>0603|414 Plattform : 1H2 |
11.1991 - 09.1998 | 0600|900<>0603|414 |
| VW | Vento 2.8 VR6 2792 ccm, 128 KW, 174 PSHSN / TSN: 0600|901<>0603|415 Plattform : 1H2 |
01.1992 - 09.1998 | 0600|901<>0603|415 |
