Wheel spacer kit 40mm incl. wheel bolts
Product.Nr.: 790392
EAN: 4048961100205
Manufacturer: NJT GbR
83,95 €
RRP 89,95 €
incl. 19 % VAT
-
🔴 Currently not available
- weight 2,43 kg
Product variations
product description

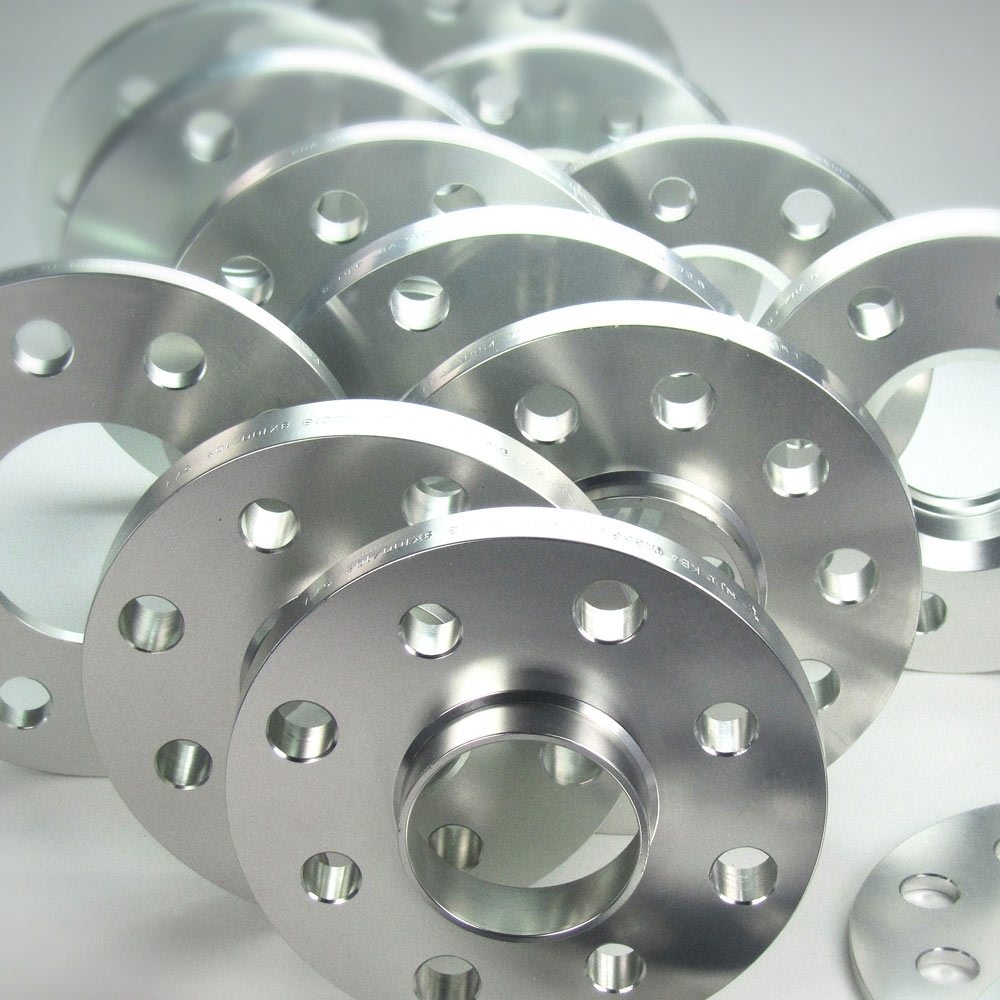

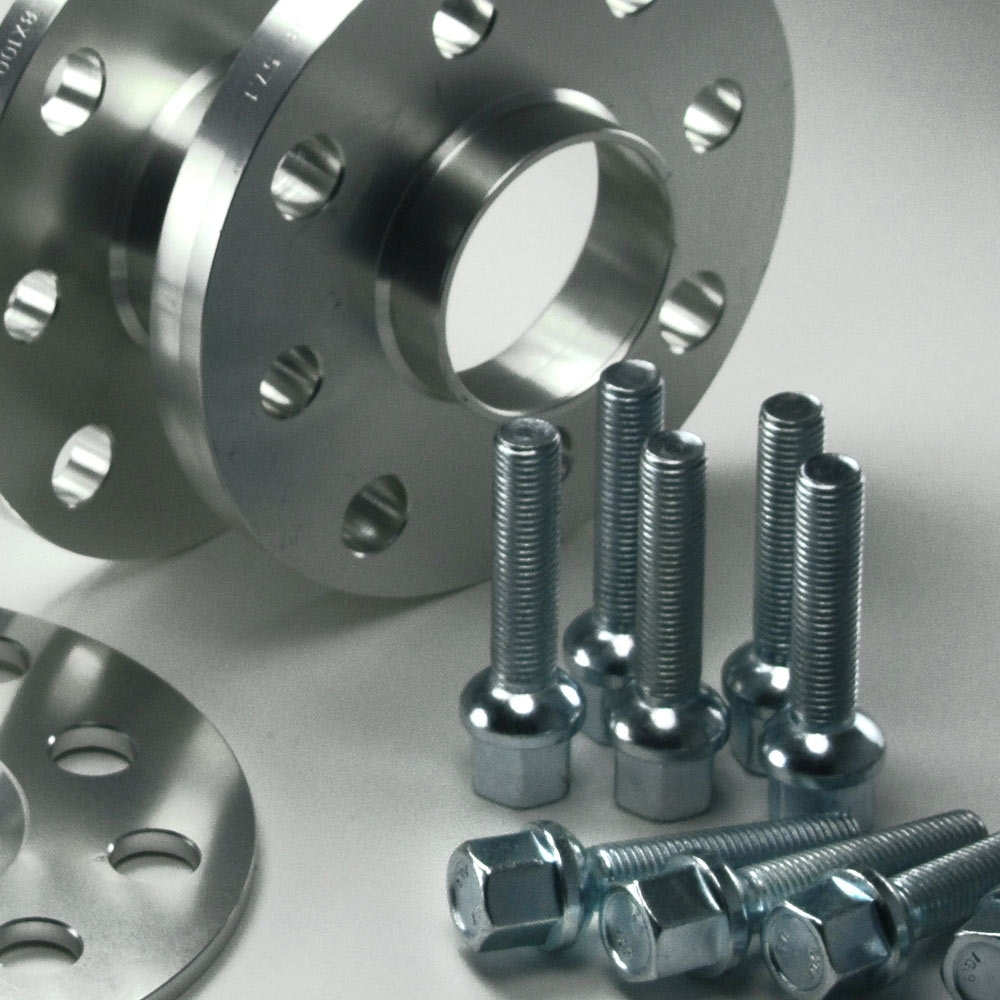

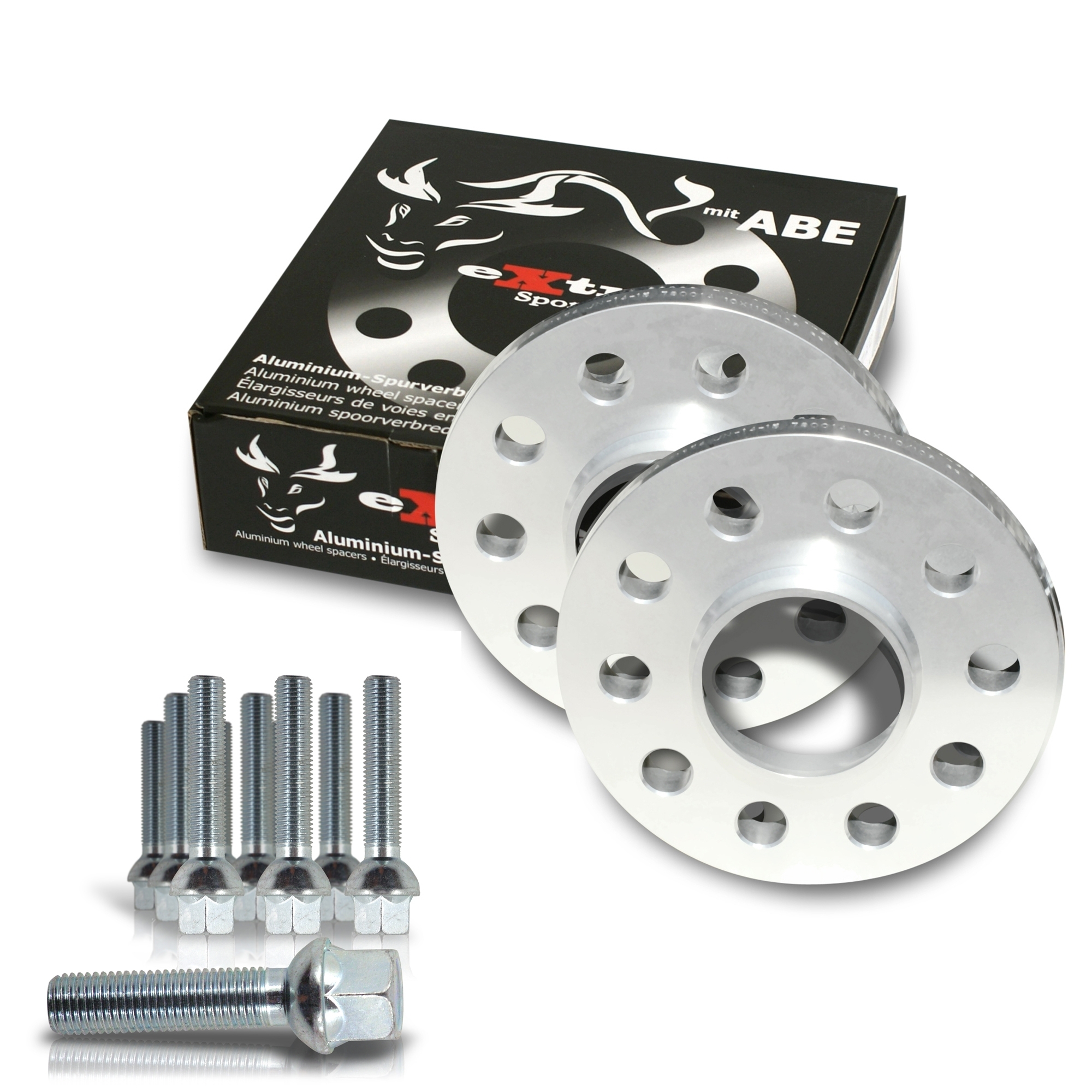

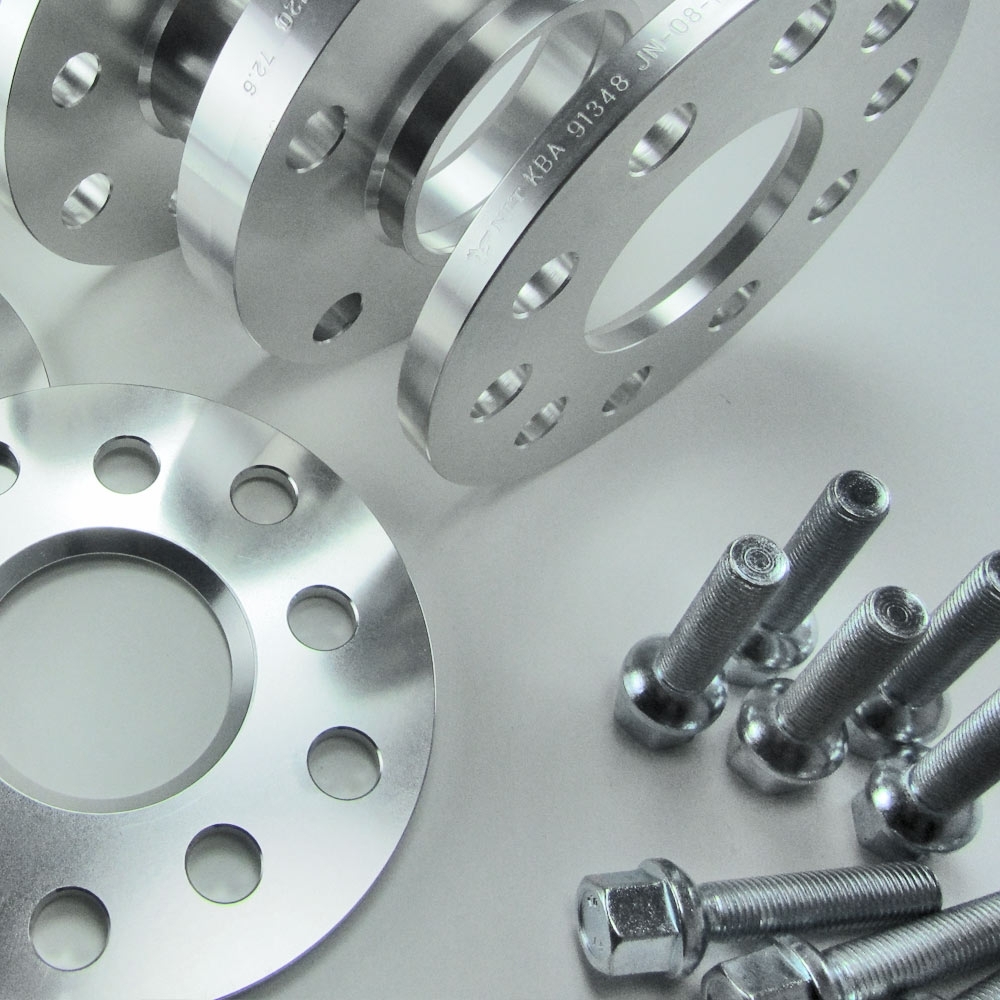

NJT alum. wheel spacers 40mm incl. wheel bolts
with general operating permit (ABE)!
wheel spacer kit
- 40mm per axle (20mm each side)
- with centering element
- hole circle 5x100 / 5x112
- hub hole bore 57,1mm
-10x spherical wheel bolts M14x1,5 50mm
Suitable for:
Seat:
Ibiza / Cordoba (6L)
- all NJT-Extrem wheel spacers are made of high strength aluminium
- additionally anodized, so that there is no chance for rust to set in
- with general operating permit / ABE (valid for the designated wheel/tire combinations)

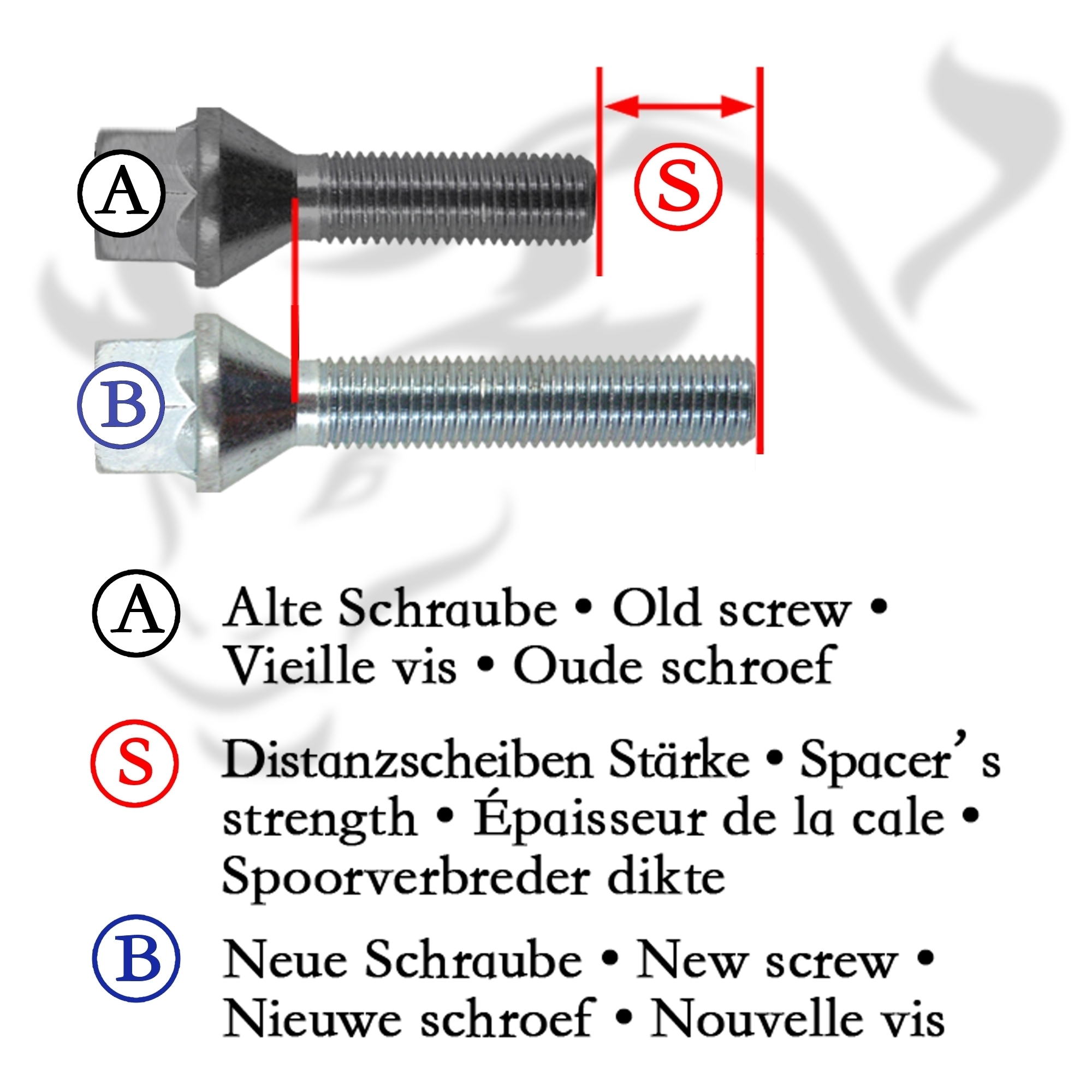

Determining the required wheel bolt length:
- measure shaft length of the original wheel bolt in mm
- add the original shaft length to the wheel spacer width
- example: original shaft length 25mm + 5mm wheel spacer (each side) = 30mm new wheel bolt length

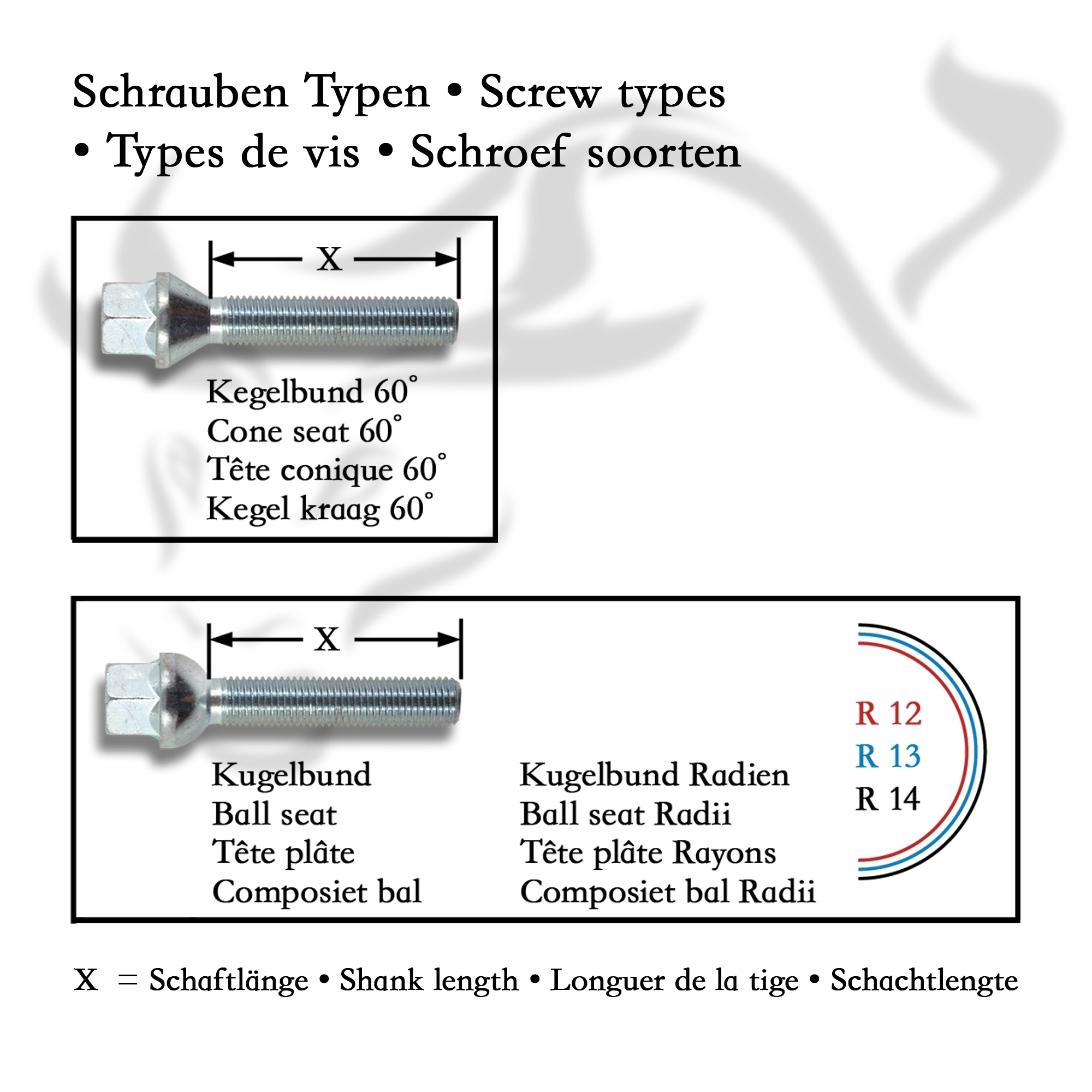

- check whether conical or spherical collar bolts are required
- - all NJT-Extrem wheel spacers are made of high strength aluminium
- - additionally anodized, so that there is no chance for rust to set in
- - with general operating permit / ABE (valid for the designated wheel/tire combinations)
safety notice
Warning: Professional installation recommended
Manufacturer identification
Manufacturer identification
Name: NJT GBRE-Mail adress: info@njt-tuning.de
Streetaddress: Harpener Hellweg 16
ZIP Code: 44805
City: Bochum
Country: DE
Phone: 0234/902950
EU economic operator
Name: NJT GBRE-Mail adress: info@njt-tuning.de
Streetaddress: Harpener Hellweg 16
ZIP Code: 44805
City: Bochum
Country: DE
Phone: 0234/902950
Compatibility
| Manufacturer | Vehicle | Construction year | HSN/TSN |
|---|---|---|---|
| Seat | Cordoba 1.2 1198 ccm, 47 KW, 64 PSHSN / TSN: 7593|014<>7593|ACJ Plattform : 6L2 |
10.2002 - 06.2006 | 7593|014<>7593|ACJ |
| Seat | Cordoba 1.2 12V 1198 ccm, 51 KW, 70 PSHSN / TSN: 7593|ACW Plattform : 6L2 |
05.2006 - 11.2009 | 7593|ACW |
| Seat | Cordoba 1.4 16V 1390 ccm, 55 KW, 75 PSHSN / TSN: 7593|015<>7593|ACK Plattform : 6L2 |
09.2002 - 12.2007 | 7593|015<>7593|ACK |
| Seat | Cordoba 1.4 16V 1390 ccm, 63 KW, 86 PSHSN / TSN: 7593|ACX Plattform : 6L2 |
05.2006 - 11.2009 | 7593|ACX |
| Seat | Cordoba 1.4 16V 1390 ccm, 74 KW, 100 PSHSN / TSN: 7593|018<>7593|ACL Plattform : 6L2 |
10.2002 - 11.2009 | 7593|018<>7593|ACL |
| Seat | Cordoba 1.4 TDi 1422 ccm, 51 KW, 70 PSHSN / TSN: 7593|515<>7593|ACM Plattform : 6L2 |
05.2005 - 11.2009 | 7593|515<>7593|ACM |
| Seat | Cordoba 1.4 TDi 1422 ccm, 55 KW, 75 PSHSN / TSN: 7593|020<>7593|ACE Plattform : 6L2 |
10.2002 - 12.2005 | 7593|020<>7593|ACE |
| Seat | Cordoba 1.4 TDi 1422 ccm, 59 KW, 80 PSHSN / TSN: 7593|517<>7593|ACN Plattform : 6L2 |
06.2005 - 11.2009 | 7593|517<>7593|ACN |
| Seat | Cordoba 1.6 1598 ccm, 74 KW, 101 PSPlattform : 6L2 | 04.2003 - 11.2009 | |
| Seat | Cordoba 1.6 16V 1598 ccm, 77 KW, 105 PSHSN / TSN: 7593|ADA Plattform : 6L2 |
11.2006 - 11.2009 | 7593|ADA |
| Seat | Cordoba 1.9 SDi 1896 ccm, 47 KW, 64 PSHSN / TSN: 7593|012<>7593|ACF Plattform : 6L2 |
09.2002 - 11.2009 | 7593|012<>7593|ACF |
| Seat | Cordoba 1.9 TDi 1896 ccm, 74 KW, 100 PSHSN / TSN: 7593|013<>7593|ACH Plattform : 6L2 |
09.2002 - 11.2009 | 7593|013<>7593|ACH |
| Seat | Cordoba 1.9 TDi 1896 ccm, 96 KW, 131 PSHSN / TSN: 7593|017<>7593|ACG Plattform : 6L2 |
10.2002 - 11.2009 | 7593|017<>7593|ACG |
| Seat | Cordoba 2.0 1984 ccm, 85 KW, 115 PSHSN / TSN: 7593|022<>7593|ACI Plattform : 6L2 |
09.2002 - 11.2009 | 7593|022<>7593|ACI |
| Seat | Ibiza III 1.2 1198 ccm, 44 KW, 60 PSHSN / TSN: 7593|ADG Plattform : 6L1 |
06.2007 - 05.2008 | 7593|ADG |
| Seat | Ibiza III 1.2 1198 ccm, 47 KW, 64 PSHSN / TSN: 7593|007<>7593|ABW Plattform : 6L1 |
02.2002 - 06.2006 | 7593|007<>7593|ABW |
| Seat | Ibiza III 1.2 12V 1198 ccm, 51 KW, 70 PSHSN / TSN: 7593|ACU Plattform : 6L1 |
05.2006 - 11.2009 | 7593|ACU |
| Seat | Ibiza III 1.4 16V 1390 ccm, 55 KW, 75 PSHSN / TSN: 7593|010<>7593|ABY Plattform : 6L1 |
02.2002 - 12.2007 | 7593|010<>7593|ABY |
| Seat | Ibiza III 1.4 16V 1390 ccm, 63 KW, 86 PSHSN / TSN: 7593|ACV Plattform : 6L1 |
05.2006 - 11.2009 | 7593|ACV |
| Seat | Ibiza III 1.4 16V 1390 ccm, 74 KW, 100 PSHSN / TSN: 7593|005<>7593|ABZ Plattform : 6L1 |
02.2002 - 11.2009 | 7593|005<>7593|ABZ |
| Seat | Ibiza III 1.4 TDi 1422 ccm, 51 KW, 70 PSHSN / TSN: 7593|514<>7593|ACB Plattform : 6L1 |
05.2005 - 11.2009 | 7593|514<>7593|ACB |
| Seat | Ibiza III 1.4 TDi 1422 ccm, 55 KW, 75 PSHSN / TSN: 7593|016<>7593|ABR Plattform : 6L1 |
05.2002 - 12.2005 | 7593|016<>7593|ABR |
| Seat | Ibiza III 1.4 TDi 1422 ccm, 59 KW, 80 PSHSN / TSN: 7593|516<>7593|ACC Plattform : 6L1 |
06.2005 - 11.2009 | 7593|516<>7593|ACC |
| Seat | Ibiza III 1.6 1598 ccm, 74 KW, 101 PSPlattform : 6L1 | 02.2003 - 11.2009 | |
| Seat | Ibiza III 1.6 16V 1598 ccm, 77 KW, 105 PSHSN / TSN: 7593|ACZ Plattform : 6L1 |
11.2006 - 11.2009 | 7593|ACZ |
| Seat | Ibiza III 1.8 T Cupra R 1781 ccm, 132 KW, 180 PSHSN / TSN: 7593|028<>7593|ABX Plattform : 6L1 |
01.2004 - 02.2008 | 7593|028<>7593|ABX |
| Seat | Ibiza III 1.8 T FR 1781 ccm, 110 KW, 150 PSHSN / TSN: 7593|512<>7593|ACA Plattform : 6L1 |
12.2003 - 05.2008 | 7593|512<>7593|ACA |
| Seat | Ibiza III 1.9 SDi 1896 ccm, 47 KW, 64 PSHSN / TSN: 7593|011<>7593|ABS Plattform : 6L1 |
02.2002 - 12.2005 | 7593|011<>7593|ABS |
| Seat | Ibiza III 1.9 TDi 1896 ccm, 74 KW, 100 PSHSN / TSN: 7593|004<>7593|ABU Plattform : 6L1 |
02.2002 - 11.2009 | 7593|004<>7593|ABU |
| Seat | Ibiza III 1.9 TDi 1896 ccm, 96 KW, 131 PSHSN / TSN: 7593|006<>7593|ABT Plattform : 6L1 |
02.2002 - 11.2009 | 7593|006<>7593|ABT |
| Seat | Ibiza III 1.9 TDi Cupra R 1896 ccm, 118 KW, 160 PSHSN / TSN: 7593|499<>7593|ACD Plattform : 6L1 |
03.2004 - 02.2008 | 7593|499<>7593|ACD |
| Seat | Ibiza III 2.0 1984 ccm, 85 KW, 116 PSHSN / TSN: 7593|021<>7593|ABV Plattform : 6L1 |
04.2002 - 11.2009 | 7593|021<>7593|ABV |
